How do I play USB content on a Colorlight processor?

How do I play USB content on a Colorlight processor?

To play back content on Colorlight M Series processors (such as the X2m, X4m, and similar models), the below specifications and steps need to be followed.

1. Supported Content and Devices
  1. The processor features a USB port, typically labeled "U-disk" or "USB," for connecting a flash drive.

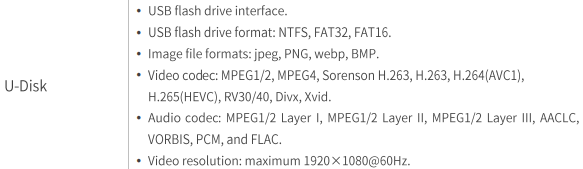

  2. Supported content includes the below

*Content must not exceed 1920 pix wide, 1080 pix high

2. Basic Steps for USB Playback
  1. Prepare your content:
    1. Place your video or image files on a USB flash drive.
  2. Insert the USB drive:
    1. Plug the USB flash drive into the processor’s USB port.
  3. Access USB playback:
    1. Using the processor’s on-screen display (OSD), navigate to the USB playback menu.
  4. Select and play content:
    1. Browse the files on the USB drive, select the desired video or image, and start playback. The processor will output the content to the connected LED screen.
    2. Control for selecting the content is done by using the now lit up, secondary commands of the input buttons.
