Aurora LDP video processor information

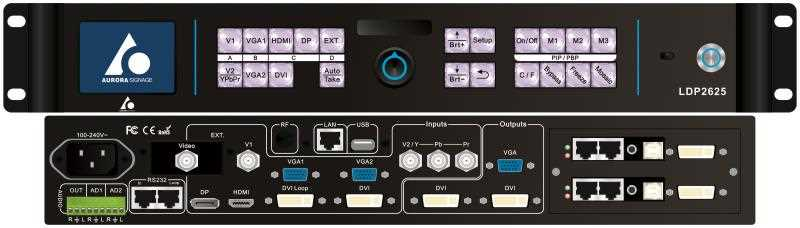

LDP2625 LED Processor

​

Overview:
The Aurora LDP2625 is a versatile LED display processor designed for commercial digital signage and video wall applications.

Key Features:

·       Full HD Video Wall Support: Handles up to 1920x1080 resolution with onboard scaling and image processing.

·       Android OS: Integrated Android system enables direct cloud-based signage using Fusion Signage.

·       Connectivity:

o  HDMI, USB, LAN, and Wi-Fi inputs

o  USB media playback

o  Direct connection to Aurora iOS and Android control apps

·       Pixel Capacity: Supports up to 3840 pixels wide, suitable for large-format LED displays.

·       Onboard Processing: Built-in video scaling and advanced image processing for optimal display quality.

·       Cloud Ready: Native support for Fusion Signage platform for remote content management.

·       Media Playback: Allows direct USB content playback without external players.

·       User Control: Manage via mobile apps or web interface.

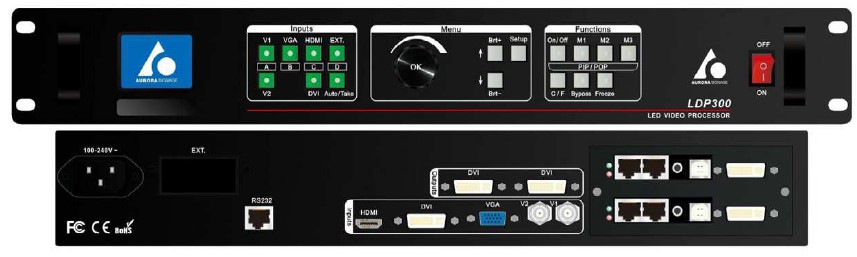

LDP300 LED Processor

​

Overview:
The Aurora LDP300 is a compact, entry-level LED processor designed for smaller to medium-sized displays, focusing on reliability and ease of use.

Key Features:

·       Video Input: HDMI and USB support for flexible content sources.

·       Pixel Capacity: Supports up to 1920 pixels wide, ideal for small to mid-sized LED screens.

·       Basic Scaling: Provides essential video scaling and image processing.

·       Media Playback: USB-based content playback for simple signage needs.

·       Control Options: LAN and USB connectivity for configuration and control.

·       Integration: Designed for straightforward deployment with Aurora LED modules.

Comparison Table

Model	LDP2625	LDP300
Max Resolution	3840 x	1920 pixels
Operating System	Android (Fusion Signage ready)	None (basic processor)
Video Inputs	HDMI, USB, LAN, Wi-Fi	HDMI, USB, LAN
Cloud Signage Support	Yes (Fusion Signage onboard)	No
Media Playback	USB, Cloud	USB
Control	App, Web, LAN/Wi-Fi	LAN, USB



Note: For specific compatibility, setup, or firmware updates, contact Aurora support.
